API standard Cementing Tool Top and Bottom Cementing Plug,Non-rotating Cementing Plug

FOB Reference Price:Get Latest Price
$20.00 - $200.00 / Piece | 1 Piece/Pieces (Min. Order)
Model Number:
4''-20''
Lead Time:
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 15 Negotiable
Customization:
Customized packaging (Min. Order: 1 Pieces)
Customized logo (Min. Order: 1 Pieces)
Samples:
$50.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
SEACO
Material:
Rubber, NBR, NR, Silicone, FKM
Certification:
API, API 10D
Type:
Cementing plug
Machine Type:
Drilling Tool
Processing Type:
moulding
Use:
Well Drilling
Condition:
New
Warranty:
1 year
Applicable Industries:
Energy & Mining, cementing tool
Local Service Location:
United States, Malaysia, UAE
Showroom Location:
United States, UAE
Product name:
API standard Cementing Tool Top and Bottom Cementing Plug
Sample test:
Yes
Factory Visit:
Yes
Supply Ability
Supply Ability:
1000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
standard export packing
Port
Tianjin port
Lead Time :
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 15 To be negotiated

API standard Cementing Tool Top and Bottom Cementing Plug,Non-rotating Cementing Plug

Product Description

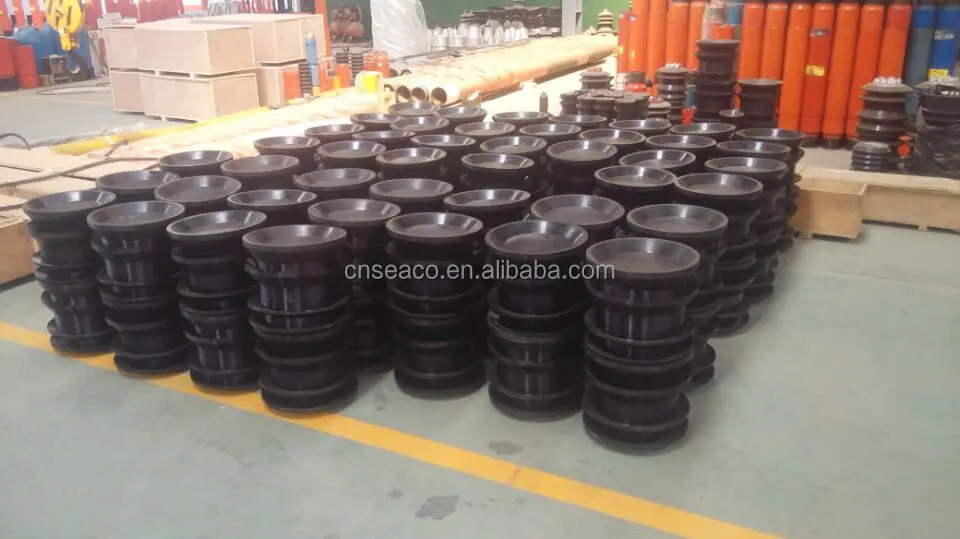

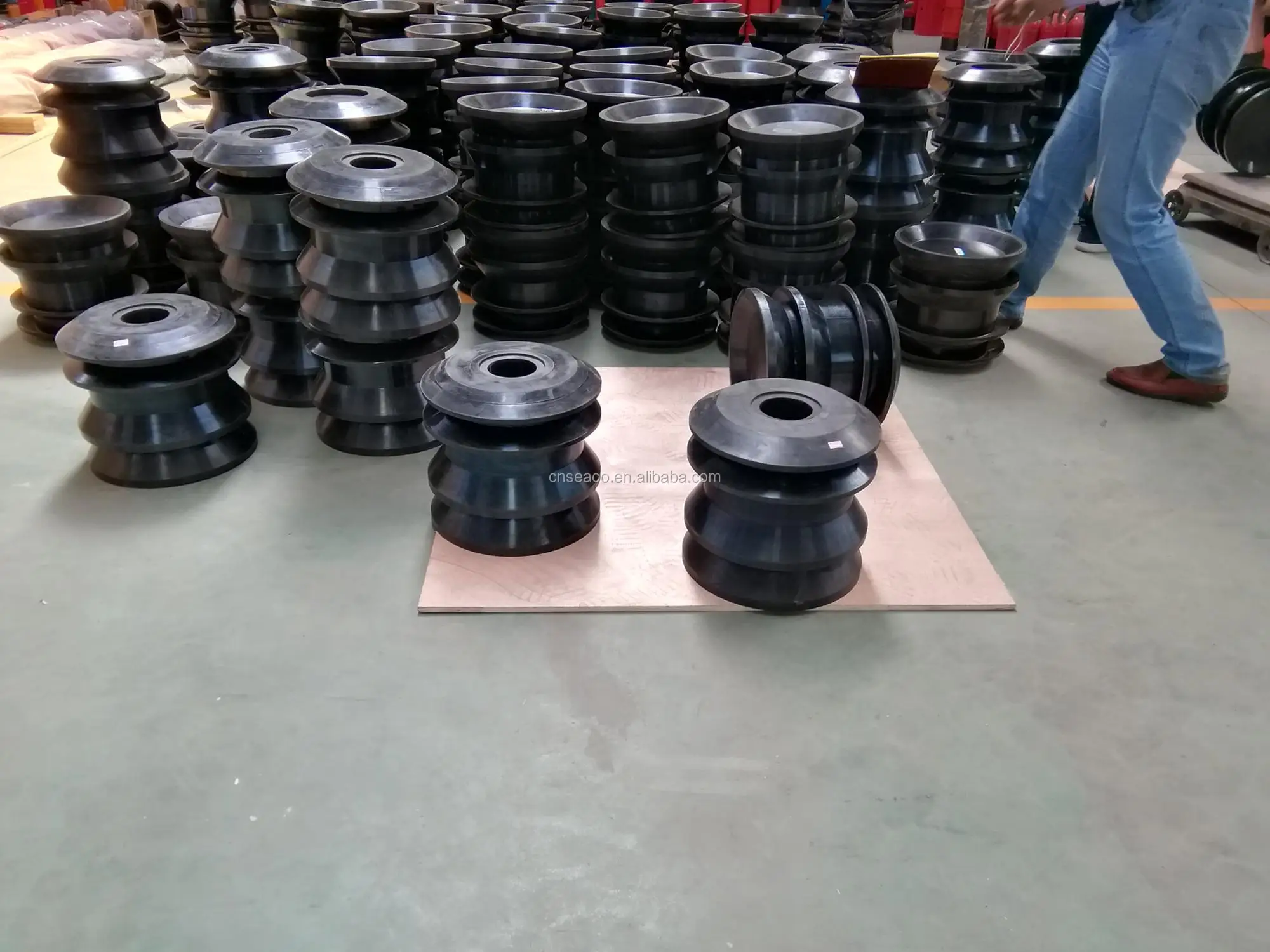

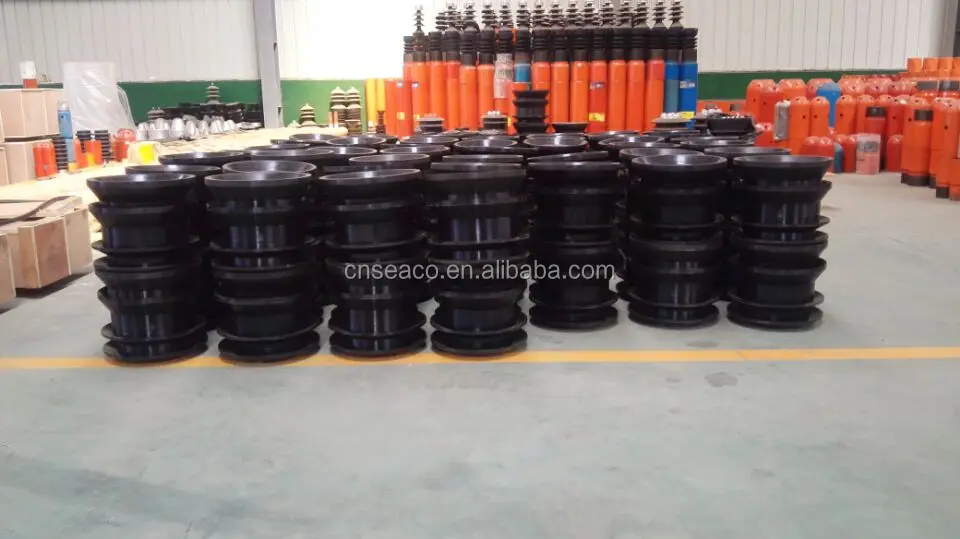

 API standard Cementing Tool Top and Bottom Cementing Plug,Non-rotating Cementing Plug

Bottom Plugs:Like the Top Cementing Plug, the fins and tail section provide positive wiping action. Fins also serve as a seal while cementing. The core of the bottom plug also made of special materials such as Plastic, Aluminium or Phenolic depending on the application and well conditions. A rubber diaphragm at the top of the plug ruptures after the plug is seated allowing cement to flow through.



Top Plugs:The Top Cementing Plug is designed to exert continuous pressure on the casing wall. The core is made of special materials such as Plastic, Aluminium or Phenolic depending on the application and well conditions. The tapered base fits the cavity of the top plug initiating a positive seal. A solid rubber top plug is also available.

Technical Parameters:

Casing size(in)

Casing weight range

Wiper Fin O.D

mm

in

mm

in

4 1/2"

14.14-17.26

9.50-11.60

110

4.331

5"

17.11-35.86

11.50-24.10

122

4.803

5 1/2"

20.83-39.88

14.00-26.80

135

5.315

7"

25.30-56.55

17.00-38.00

170

6.693

7 5/8"

35.72-63.69

24.00-42.00

185

7.283

9 5/8"

53.57-79.62

36.00-53.50

235

9.252

10 3/4"

60.27-97.77

40.50-65.70

260

10.236

13 3/8"

71.43-107.15

48.00-72.00

333

13.110

20"

139.89-197.93

94.00-133.00

498

19.606
