6 5/8" X 8 1/2" API rigid centralizer, single bow/double bow centralizer

FOB Reference Price:Get Latest Price
$10.00 - $50.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
seaco
Model Number:
all size
Type:
cementing tool, straight blade and spiral blade
Machine Type:
Drilling Tool
Certification:
API
Material:
Carbon Steel
Processing Type:
Forging
Use:
Well Drilling
name:
rigid casing centralizer
size:
10 3/4"-20"
Standard:
API
Application:
improve cementing quality
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
wooden case or customerized
Port
Qingdao/Tianjin port
Lead Time :
depend on requirements

6 5/8" X 8 1/2" API rigid centralizer single bow/double bow centralizer

API rigid centralizer, single bow/double bow centralizer

Product Description

1) Material: Carbon Steel



2) Type: Solid Rigid Steel Type Casing Centralizer



3) API and ISO certified



4) Specifications: 4 1/2''---13-3/8''. More special sizes or combination are available as requested.



Straight Vane Rigid Steel Type Casing Centralizer:



6 5/8" X 8 1/2" API rigid centralizer single bow/double bow centralizer

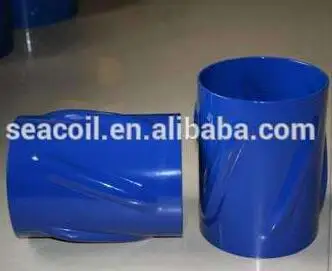

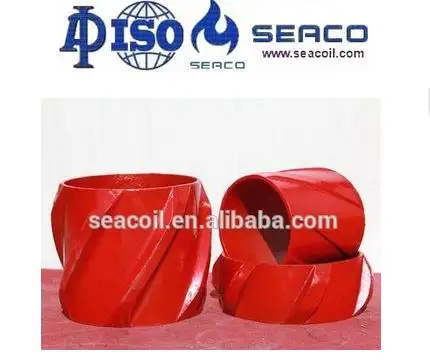

Spiral Vane Rigid Steel Type Casing Centralizer:

Rotating Rigid Steel Type Casing Centralizer:

5) Introduction of solid rigid casing centralizer

Solid rigid centralizers are built out of solid steel bar or cast iron or other solid material, with a fixed blade height and are sized to fit a specific casing or hole size, to help center the casing in the wellbore.



6 5/8" X 8 1/2" API rigid centralizer single bow/double bow centralizer

6) Application of solid rigid casing centralizer

Solid rigid casing centralizers are suitable for deviated wells and horizontal wells.



7) Features for Solid Rigid centralizers:

a. Be rugged and works well even in deviated wellbores, regardless of the side force..
b. Shock, impact and corrosion resistant.
c. High tensile and yield strengths.
d. Available with straight or spiral blades.
e. Provide a guaranteed standoff and function as bearings during the pipe rotation.
f. The OD of rigid centralizers are smaller than wellbore.



6 5/8" X 8 1/2" API rigid centralizer single bow/double bow centralizer

8) Installation of solid rigid casing centralizer

Rigid centralizers can be installed on the casing with stop collars or with integral set screws. Installations that allow casing rotation and reciprocation are preferred because of improved displacement efficiency. Most slip-on rigid centralizers must be installed between stop collars and are freely floating there between.



6 5/8" X 8 1/2" API rigid centralizer single bow/double bow centralizer

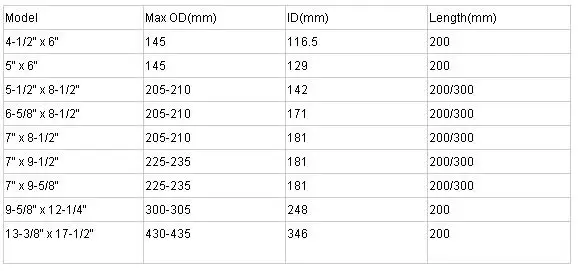

9) Parameter

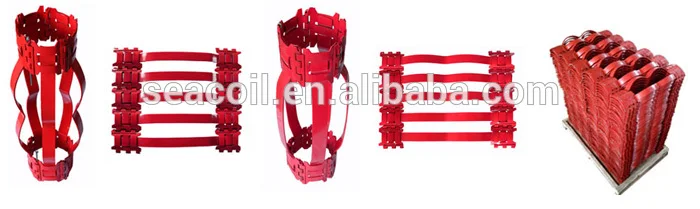

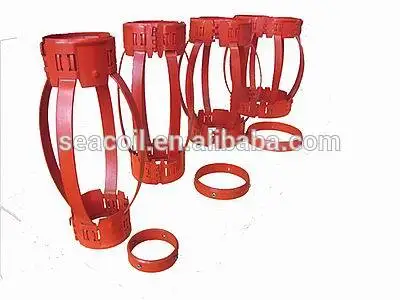

Other Types of Casing Centralizers:
